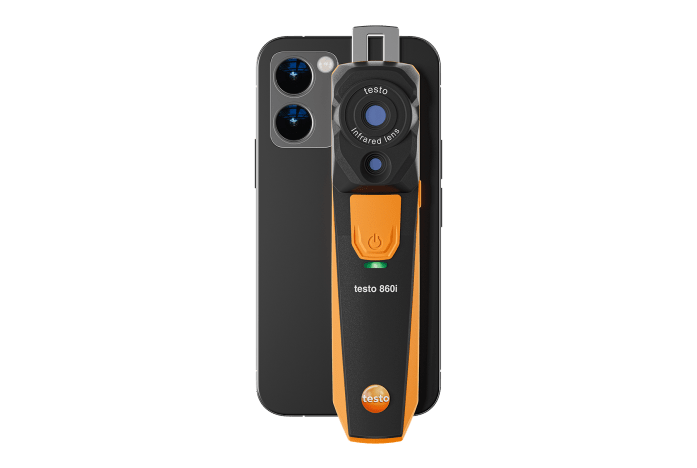

testo 860i 智联型掌上红外热像仪

优势
  • 借助特定应用测量程序 DeltaHeat 和 DeltaCool,可在热像图中快速便捷地测定系统温差(Delta T)
  • 红外分辨率(256×192像素),拍摄清晰的热像图
  • testo Smart App 让一切化繁为简:操作简便,可在现场轻松完成数据保存,创建报告并发送
  • 具备无线功能,使用灵活;直接连接至智能设备时,可实现单手操作
  • 实用性强且坚固耐用,拥有IP54防护等级,1.5米抗跌落保护
德图 testo 860i 智能手机无线热像仪凭借专用测量功能 DeltaHeat 和 DeltaCool,能在热像图中快速便捷地完成温差(Delta T)测定。依托高红外分辨率呈现清晰热像图,以及通过德图智能应用程序实现的简易操作,该热像仪无论是无线使用,还是直接在智能手机上单手操作,都能提供灵活多样的应用选择,且日常实用性极强。



连接智能,开启热视之眼。
告别局限,自由探测。

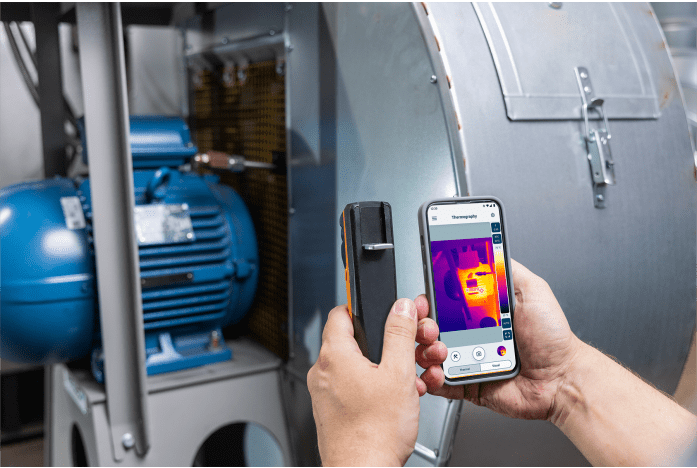

德图智联型掌上红外热像仪 testo 860i,手机分离款热像仪,小巧灵活,脱离距离限制。

全新德图智联型掌上红外热像仪 testo 860i 操作便捷,可在德图智能应用中直观显示,是暖通空调、设备维护、建筑检测等众多领域快速抽查的理想选择。

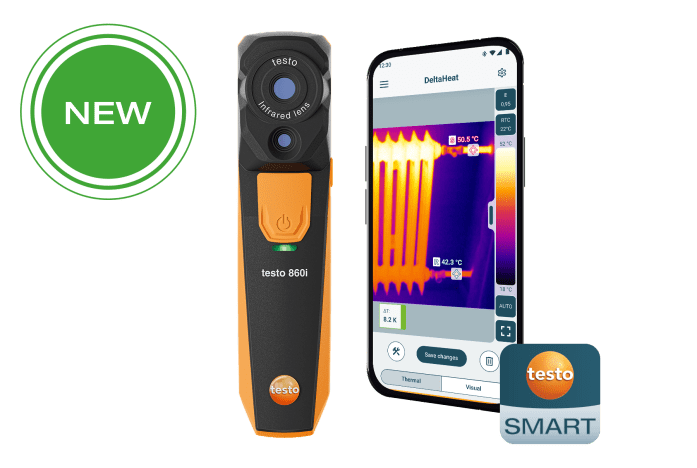

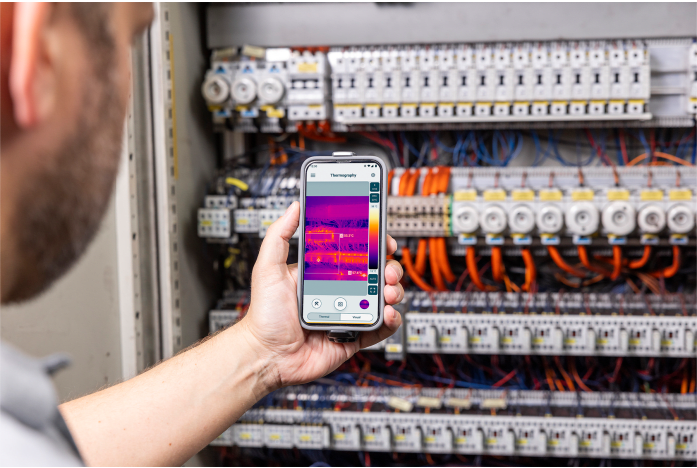

德图智联型掌上红外热像仪 testo 860i 凭借特定应用测量功能,能在热像图中快速轻松地测定温差(Delta T):DeltaHeat可快速测定散热器的供回水温差, DeltaCool 能快速评估制冷及空调系统的温差检测。此外, 湿度模式还有助于评估室内环境的霉变风险, 热成像测量功能则能在设备维护时快速清晰地显示热点和温差。

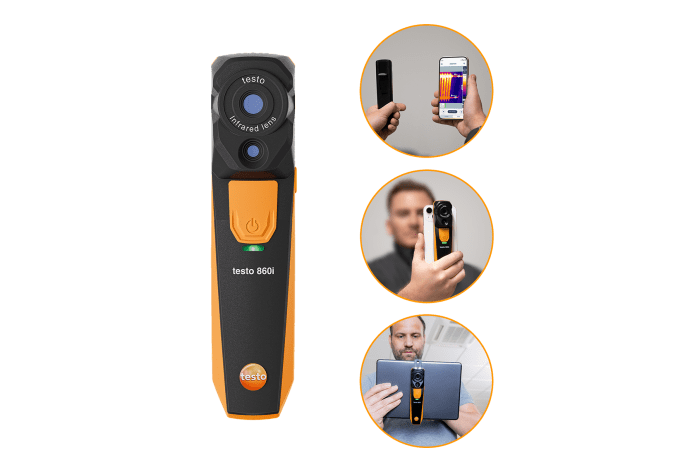

通过德图 App 可对 testo 860i 进行操作、显示热像图与温差,并完成记录工作——操作简单、高效且智能。德图智联型掌上红外热像仪 testo 860i 使用方式灵活,既可以直接连接到智能手机/平板电脑实现单手操作。其出色的日常实用性、坚固耐用性以及续航时间长的可充电锂电池,让德图智联型掌上红外热像仪 testo 860i 成为值得信赖的好帮手。


产品包含

智联型掌上红外热像仪 testo 860i ,通过 App 实现简单操作和直观显示,包含USB-C 数据线和纸盒包装。


技术数据

技术参数

防护等级
IP54
系统要求
requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0

红外图像输出

视场
48° x 36°
对焦
定焦
最小聚焦距离
0.3 m
图像刷新频率
9 Hz
红外分辨率
256 x 192 pixels
热灵敏度
50 mk
红外图像输出1
光谱范围
8 ~ 14 µm

可见光图像输出

最小聚焦距离
0.4 m
图像像素
640 x 480 pixels

图像显示

颜色
iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
数码变焦
显示屏选项
红外图像/可见光图像
(in the testo Smart App)

测量

精度
±3 °C or ±3 % of m.v. (at ambient temperature of -10... +40 °C and scene temperature of 0... +150 °C or +100... +350 °C)
发射率
0.01 ~ 1
测量范围
-20 ... +350 °C
反射温度
手动; (via testo Smart App)

测量功能

分析功能
Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)
湿度模块说明
电流、电压或功率的输入
带湿度测量的湿度测量仪
Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App
钳形表
Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App
Application-specific measurement functions
DeltaHeat; DeltaCool; Humidity mode
(in the testo Smart App)

图像设备

全屏模式
无线局域网络连接
Communication with the testo Smart App; WIFI: IEEE 802.11b/g/n*
蓝牙
Peer-to-peer advertising for fast connection set-up*
Remote-controlled operation
Up to 10 m from the mobile device (via WLAN)
* An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

图像存储

图像格式
.bmt; .jpg; .csv
存储设备
On a mobile device

电源

电池类型
Integrated Li-ion rechargeable battery
充电选择
USB-C
Charging time
Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time)

环境情况

环境湿度
5 to 95 %RH, non-condensing
振动
IEC 60068-2-6
Impact resistance test
1.5 m
储存温度
-20 ~ +70 °C
操作温度
-10 ~ +50 °C

物理规格

三脚架界面
1/4" - 20UNC
Mobile device attachment
Clip span: min. 120 mm, max. 170 mm and device depth up to max. 12 mm
重量
195 g
大小
165 x 45 x 38 mm

PC软件

系统要求
Windows 10; Windows® 11
(testo IRSoft)
